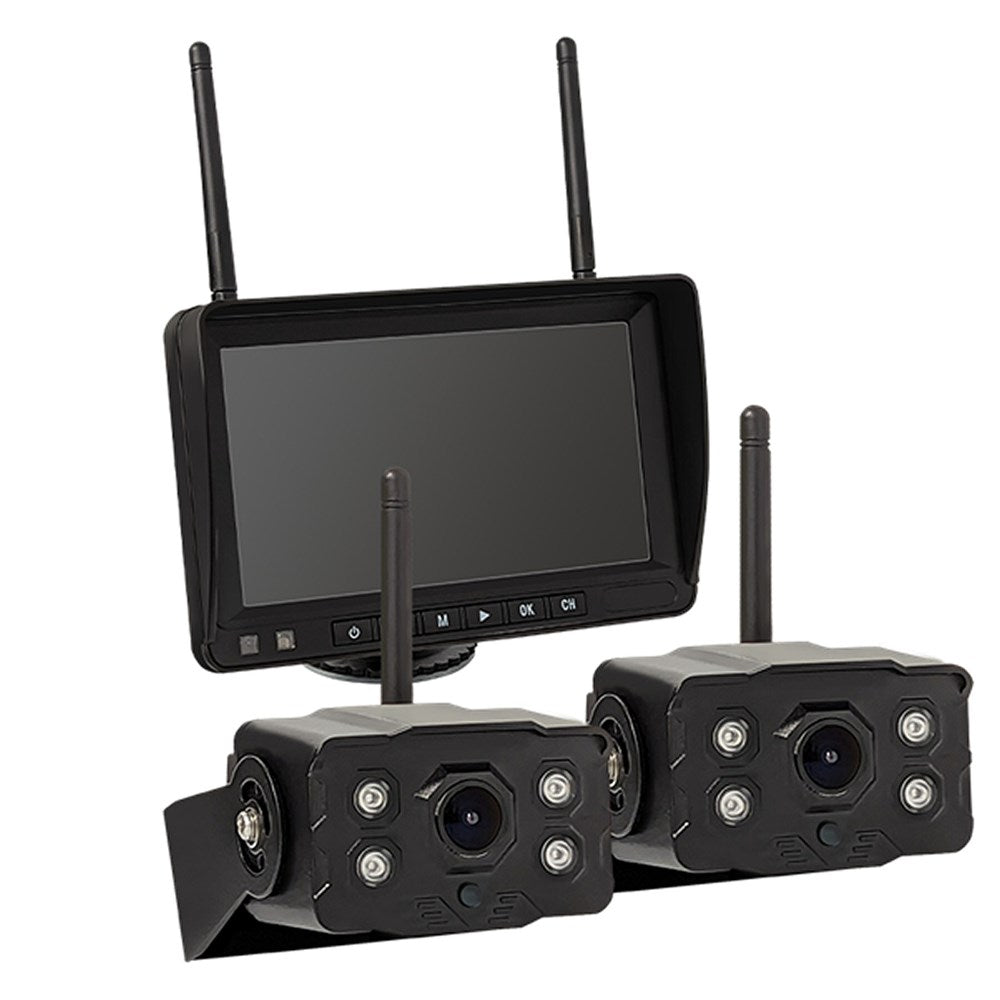

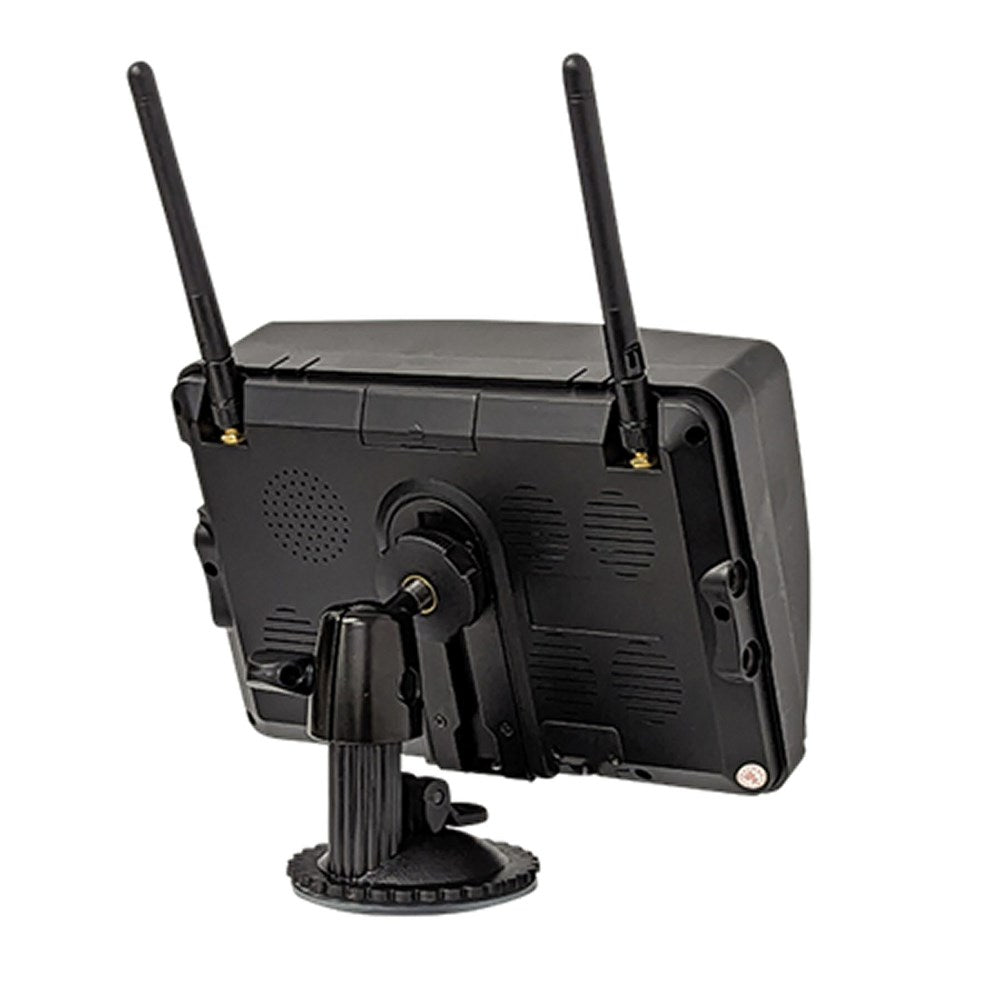

SPHERE WIRELESS DUAL REVERSE CAMERA AND MONITOR KIT

Specifications

• Wireless Monitor Specifications:

  • 7-inch digital wireless monitor
  • DVR function – Insert an SD card into the monitor and it will record the image from the paired cameras
  • Supports up to 4 cameras
  • Multiple Viewing Options - Single/Split Screen/Quad
  • Operating frequency: 2400-2483.5MHZ
  • Transmitted Power:18db
  • Resolution: 1280 (H) X 1024 (V)
  • Power Supply: DC12-36V
  • Power consumption: <500mA
  • Operating temperature: -20 ° C ~ 70° C
  • Storage temperature: -30 ° C ~ 80° C

• Wireless Camera Specifications

  • View Angle: 127° [H] 170° [D]
  • Waterproof Rating: IP69
  • Minimum illumination: 0.5lux
  • Power Supply: DC12V-36V
  • Operating frequency: 2400-2483.5MHZ
  • Operating Temperature -20 ° C ~ + 70° C / RH 95%Max
  • Storage Temperature -30° C ~ + 80° C / RH 95% Max
